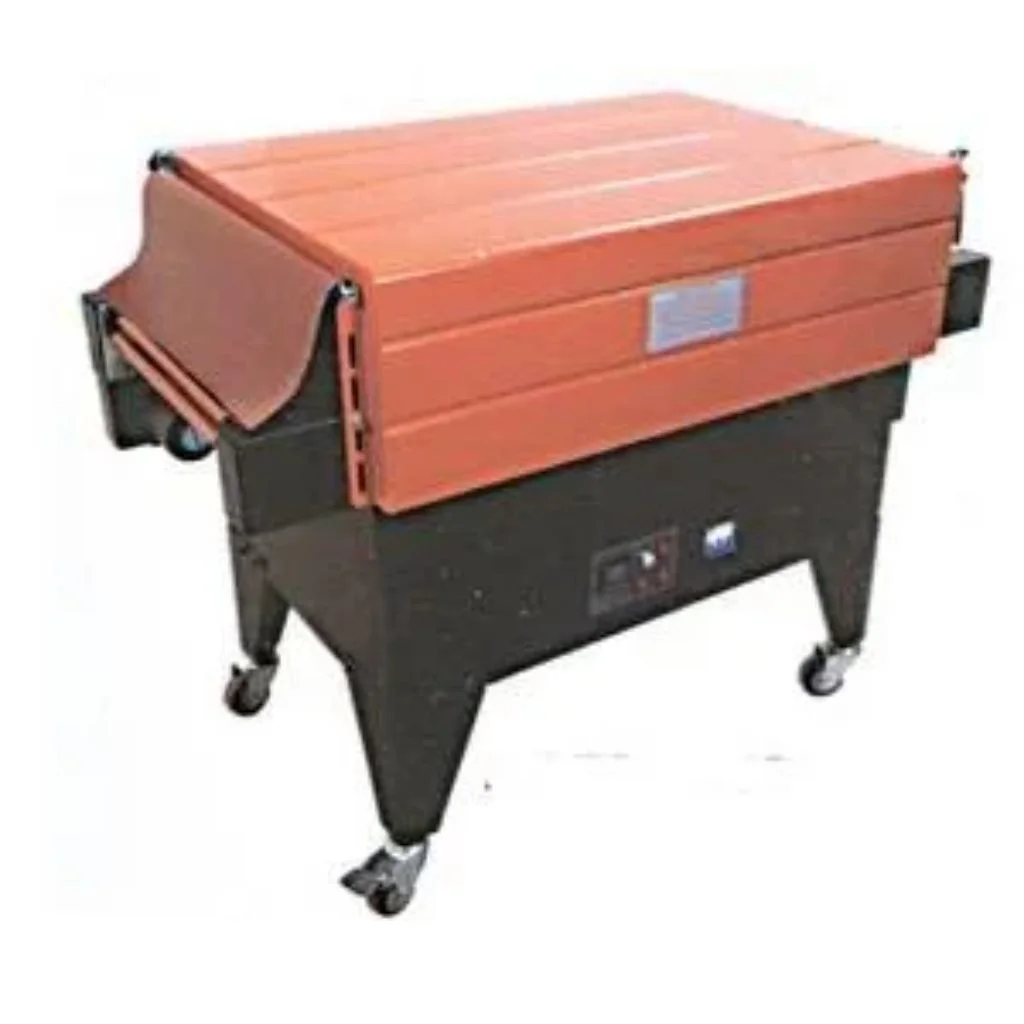

Shrink Tunnel Machine Manufacturers
Ace Packaging Solution is India’s leading Shrink Tunnel Machine Manufacturers & Supplier from Ghaziabad Uttar Pradesh, India. We are Offering Shrink Tunnel Machines to our clients in various sizes and shapes. Our complete range is high-speed performing wrappers that mainly aim at specific industries like soft drinks and mineral water. We focus on the quality of our product and use the high-grade raw material to fabricate such wrappers. A shrink tunnel machine is a compact version of a shrink tunnel used in packaging operations.
Features :
- Efficient heat distribution for uniform shrinking.
- Adjustable conveyor speed for versatile packaging.
- Durable construction for long-lasting performance.
- Temperature and time controls for precise packaging.
- Suitable for various shrink films and products.
- Professional and attractive product packaging.
- Enhanced product protection during transit and storage.
- Increased production efficiency and output.
- Easy integration into existing packaging lines.
- Versatile applications across different industries.
What is a Shrink Tunnel Machine?
A shrink tunnel machine is a packaging device that uses heat to shrink plastic film tightly around products. This creates a neat, professional finish, making the product look appealing while offering protection from dust, moisture, and tampering.
These machines are commonly used in industries like:
- Food and Beverages: Wrapping bottles, cans, and food items.
- Pharmaceuticals: Securing medicines in tamper-proof packaging.
- Electronics: Safeguarding delicate components.
| SPECIFICATIONS | APT 2012 | APT 4525 | APT 4535 | APT 635 | APT 5540MPE |
|---|---|---|---|---|---|
| Tunnel Dim (LxWxH) | 200 x 120mm | 900 x 450 x (50-250)mm | 1200 x 450 x (50-350)mm | 1200 x 650 x (50-350)mm | 1400 x 550 x 400 |
| Power Requirement | 1 Ph, 220V, 2.40 KW | 3 Ph, 380V, 6.50 KW | 3 Ph, 380V, 9.60 KW | 3 Ph, 380V, 9.60 KW | 3 Ph, 380V, 21.00 Kw |
| Power Consumption | 4.00 KW/hr | 4.00 KW/hr | 6.50 KW/hr | 6.60KW/hr | 15.00 KW/hr |
| Conveyor Loading | 15 kg | 15 kg | 25 kg | 30 kg | 40 kg |
| Conveyor Speed | 0-10 m/min | 0-10 m/min | 0-10 m/min | 0-10 m/min | 0-10 m/min |
| Suitable For | PVC & POF | PVC & POF | PVC & POF | PVC & POF | PVC & POF |
(FQA) Frequently Asked Question
This system consists of two main parts:
- L-Sealer: This part of the machine uses a heat-sealing blade in an “L” shape to cut and seal shrink film around the product. The product is placed on a conveyor, which moves it under the sealing arm where the L-sealer wraps the film, forming an enclosed package.
- Shrink Tunnel: After sealing, the product enters a heated tunnel that shrinks the film tightly around it. The heat causes the shrink film to contract and conform to the shape of the item, creating a snug, tamper-evident wrap.
L-sealers with shrink tunnels are widely used in manufacturing, retail, food, and pharmaceutical industries.
A shrink tunnel works by using heat to shrink and conform plastic film around a product or package. Here’s a general overview of how a shrink tunnel typically operates:
The product or package is first wrapped in a layer of shrink film. This can be done manually or automatically using a wrapping machine.
A shrink wrap machine is a type of packaging equipment used to wrap products in a layer of plastic film, which is then shrunk tightly around the product using heat. The resulting package is secure, durable, and tamper-evident, making it ideal for a variety of products, including food items, cosmetics, electronics, and industrial goods.
Shrink wrap is called so because the plastic film used in the packaging process shrinks and conforms tightly around the product when exposed to heat, creating a secure, protective seal.
The plastic film used in shrink wrap packaging is typically made from a type of polymer material, such as polyethylene, polypropylene, or PVC. The film is initially wrapped loosely around the product and then heated using a heat gun, a heat tunnel, or other heat source.
